Design calculation of the storage tank

Description of the tank

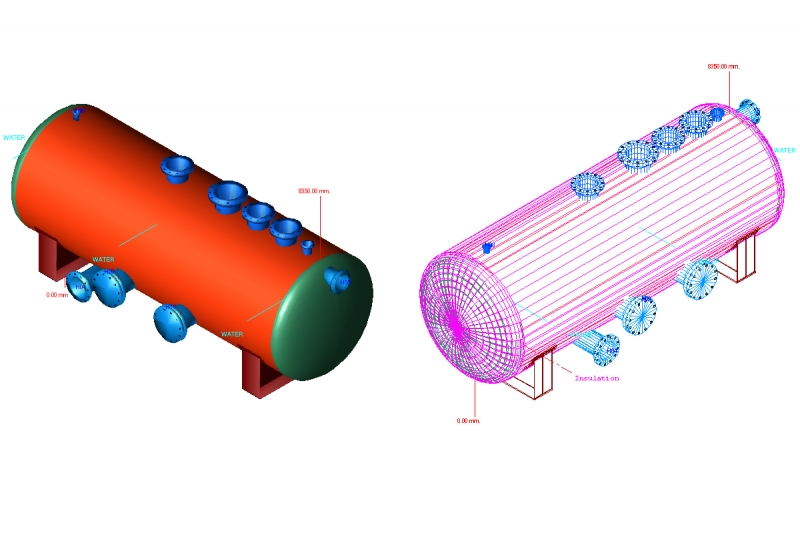

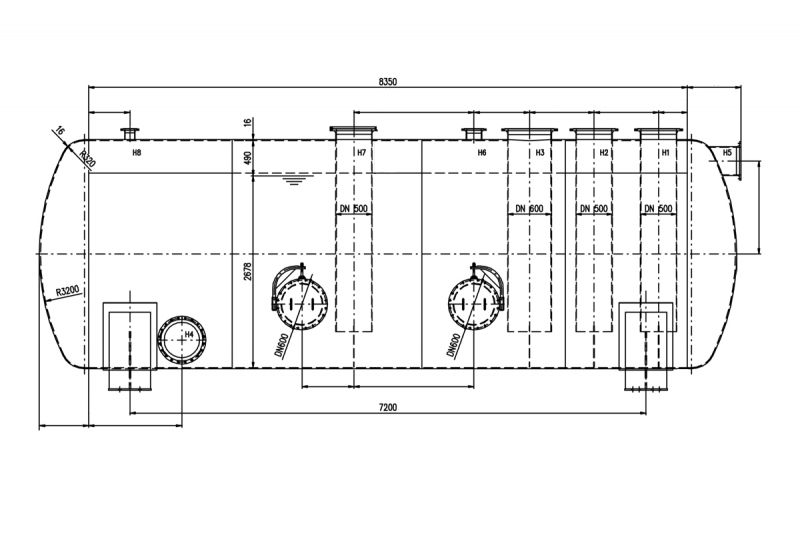

Horizontal cylindrical vessel at two saddle supports. Tank is open to the atmosphere. Water is the inner medium.

Gravity by the mass of the particular parts of the tank and mass of the liquid and insulation.
Hydrostatic pressure of the medium.
Temperature of the medium.
Seismic loads acc. UBC 1997.

Calculation software

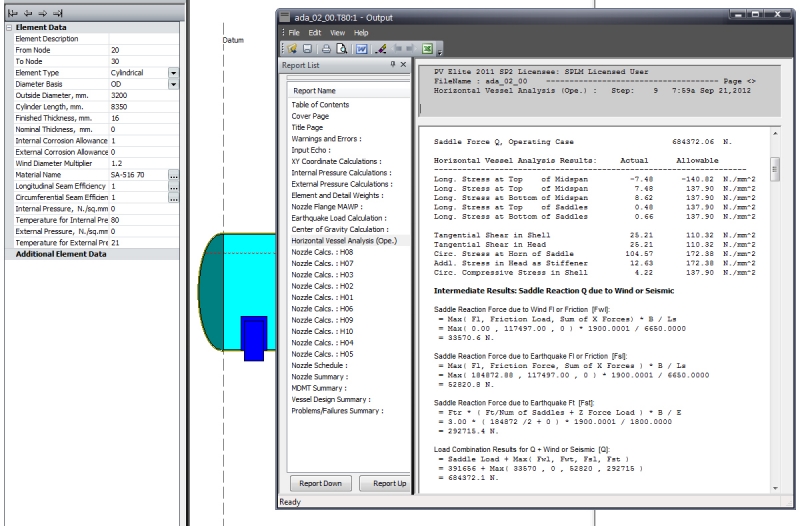

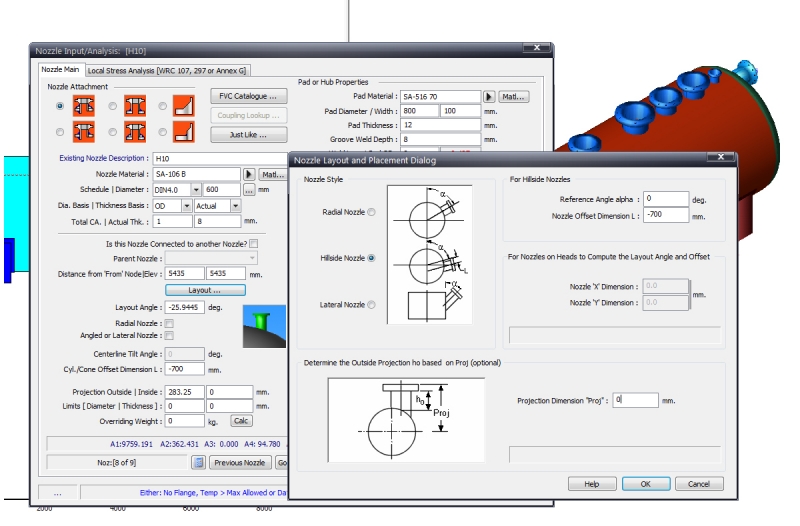

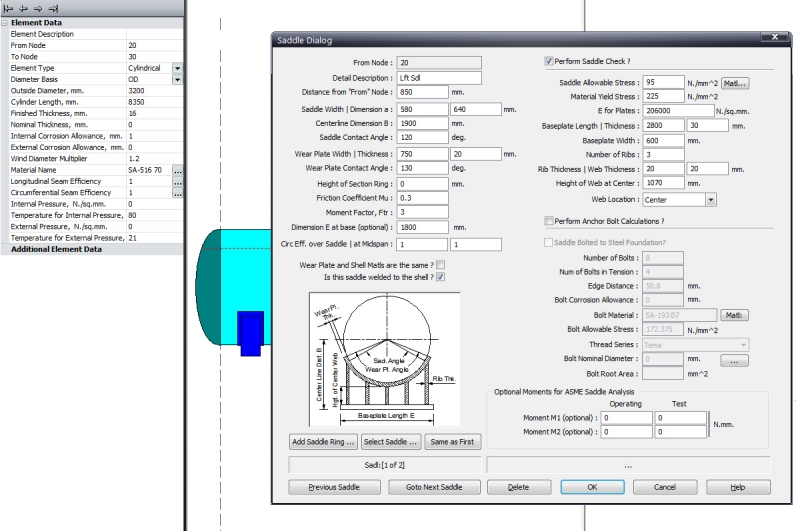

PV Elite 2011 (Intergraph Corp.).

Documents used for the calculation
ASME Sec. VIII, Div.1.
ASME Sec. VIII, Div. 2 (Zick method).
Dennis R. Moss - Pressure Vessel Design Manual.
